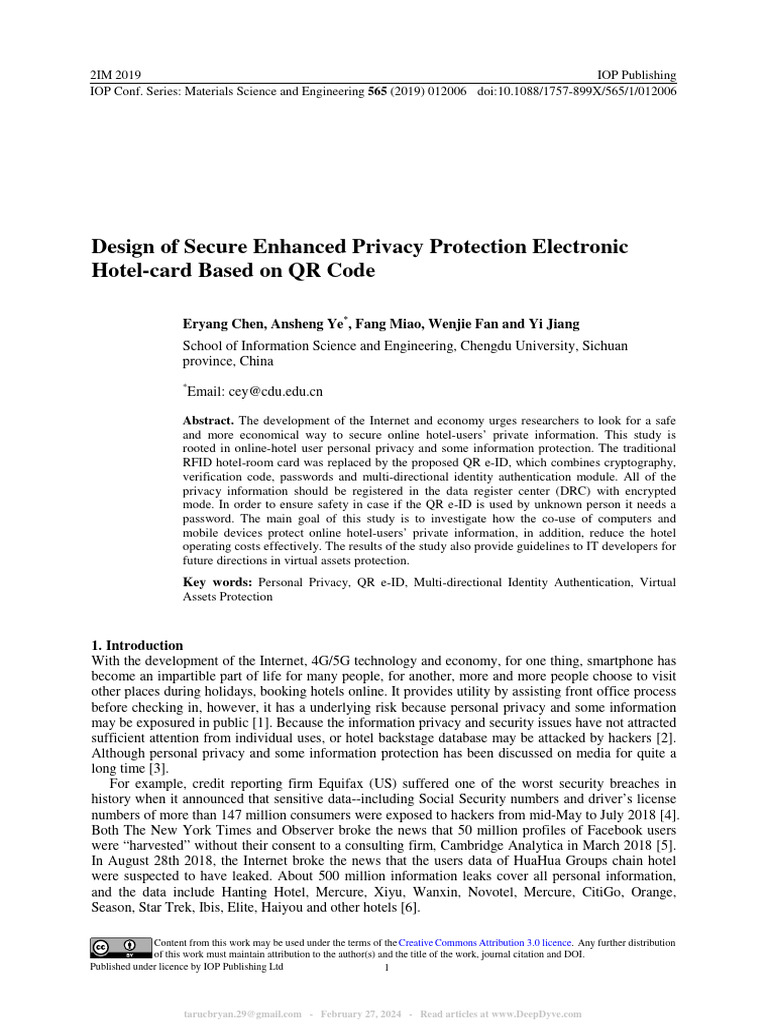

Design of Secure Enhanced Privacy Protection Electronic

Hotel-card Based on QR Code

Eryang Chen, Ansheng Ye*, Fang Miao, Wenjie Fan and Yi Jiang
School of Information Science and Engineering, Chengdu University, Sichuan
province, China
*
Email: [email protected]

Abstract. The development of the Internet and economy urges researchers to look for a safe
and more economical way to secure online hotel-users’ private information. This study is
rooted in online-hotel user personal privacy and some information protection. The traditional
RFID hotel-room card was replaced by the proposed QR e-ID, which combines cryptography,
verification code, passwords and multi-directional identity authentication module. All of the
privacy information should be registered in the data register center (DRC) with encrypted
mode. In order to ensure safety in case if the QR e-ID is used by unknown person it needs a
password. The main goal of this study is to investigate how the co-use of computers and
mobile devices protect online hotel-users’ private information, in addition, reduce the hotel
operating costs effectively. The results of the study also provide guidelines to IT developers for
future directions in virtual assets protection.
Key words: Personal Privacy, QR e-ID, Multi-directional Identity Authentication, Virtual
Assets Protection

1. Introduction
With the development of the Internet, 4G/5G technology and economy, for one thing, smartphone has
become an impartible part of life for many people, for another, more and more people choose to visit
other places during holidays, booking hotels online. It provides utility by assisting front office process
before checking in, however, it has a underlying risk because personal privacy and some information
may be exposured in public [1]. Because the information privacy and security issues have not attracted
sufficient attention from individual uses, or hotel backstage database may be attacked by hackers [2].
Although personal privacy and some information protection has been discussed on media for quite a
long time [3].
For example, credit reporting firm Equifax (US) suffered one of the worst security breaches in
history when it announced that sensitive data--including Social Security numbers and driver’s license
numbers of more than 147 million consumers were exposed to hackers from mid-May to July 2018 [4].
Both The New York Times and Observer broke the news that 50 million profiles of Facebook users
were “harvested” without their consent to a consulting firm, Cambridge Analytica in March 2018 [5].
In August 28th 2018, the Internet broke the news that the users data of HuaHua Groups chain hotel
were suspected to have leaked. About 500 million information leaks cover all personal information,
and the data include Hanting Hotel, Mercure, Xiyu, Wanxin, Novotel, Mercure, CitiGo, Orange,
Season, Star Trek, Ibis, Elite, Haiyou and other hotels [6].

Content from this work may be used under the terms of the Creative Commons Attribution 3.0 licence. Any further distribution
of this work must maintain attribution to the author(s) and the title of the work, journal citation and DOI.
Published under licence by IOP Publishing Ltd 1

[email protected] - February 27, 2024 - Read articles at www.DeepDyve.com

2IM 2019 IOP Publishing
IOP Conf. Series: Materials Science and Engineering 565 (2019) 012006 doi:10.1088/1757-899X/565/1/012006

To provide an alternative of authentication for online accounts, QR code (Quick Response Codes)
is introduced. QR codes were initially used in Marketing for advertising purpose for its strong ability
to store identification information of the advertiser and its convenience to use [7]. For example, the
only way to log in WeChat in PC is to scan the QR code by a mobile phone or a pad. This study would
help practitioners understand how QR codes mitigate online users’ fears of threats to their privacy and
security.

2. Literature review
QR code was initially invented for the automotive industry in Japan in the early 1990s. Similar to bar
codes, QR codes technically are machine-readable optical labels using two-dimensional barcode to
store information of the item to which it is attached or associated. A QR code uses four standardized
encoding modes such as numeric, alphanumeric, byte/binary, and kanji (the subset of Chinese
characters used in the Japanese language) to store data efficiently [8].Graphically, a QR code consists
of black squares arranged in a square grid on a white background, including five areas: finder pattern,
alignment pattern, timing pattern, quiet zone, and data area, and each area has its unique functionality
[9].
The QR code became popular outside the automotive industry due to its fast readability and greater
storage capacity compared to standard UPC barcodes. The symbol versions of the QR Code range
from Version 1 to Version 40 [10]. Each version has a different module configuration, which refers to
the number of modules contained in a symbol, commencing with Version 1 (21 × 21 modules) up to
Version 40 (177 × 177 modules) Each QR Code symbol version has the maximum data capacity,
according to the amount of data, character type and error correction level.
Today, marketers are creating exciting, new cross media strategies by including digital QR codes
on printed pieces across the marketing mix; from collateral to bill statements to signage and product
placement, the applications are endless. In other words, QR Codes are called the link between the
Electronic and Paper Worlds.
G.PRABAKARAN [11] proposed the authentication system based privacy protection QR-code,
that allows the user to safely enter credentials and information to transfer money after launching
LIVE-CD on stand alone in place and avoiding the possibility of entering credit card details (send or
receive money without using of credit cards). The entered information is encrypted by common key
crypto system and stored in a QR (quick response) code. YAN Wen-bo [12] proposed a privacy-
preserving scheme for logistics systems based on 2D code and information hiding.

3. Research models

3.1. DRC
Whether information security or network space security, data is the most core security goal. Especially
in the open environment, the safety of data and the safe application of data face great challenges. The
data is encrypted and stored in the data registration center (DRC), and the system can only be used
legally after authorization. This approach makes sense for data security and data security applications
[13].

3.2. QR e-ID
A QR e-ID will be automatically generated for the current user after the order is completed. The QR e-
ID contains the basic information of the guest room and the identity information of the guest.
Therefore, the security of the QR e-ID is an important issue. The DRC plays an important role in
improving the QR e-ID safety. Figure 1 shows Mutual information between the database and the QR
e-ID.

[email protected] - February 27, 2024 - Read articles at www.DeepDyve.com

2IM 2019 IOP Publishing
IOP Conf. Series: Materials Science and Engineering 565 (2019) 012006 doi:10.1088/1757-899X/565/1/012006

Key database fields QR e-ID

Encryption
CName Coded Name
CRoomNo RoomNo
Check-in and
CCheckIn check-out time
CCheckOut ID Type
CIDType ID Number
CIDNo Verification code
Enter password
CPassWord
manually

Figure 1. Mutual information between the database and the QR e-ID

In order to improve the security of the QR e-ID as much as possible, the security measures are as
follows:
(1) The security of background data is ensured by the DRC.
(2) The customer's name is coded as a combination of letters. If the tenant's name is in Chinese, the
initials of the Chinese phonetic alphabet will be extracted; If the tenant's name is in English, the initial
combination of English letters will be extracted. So that, even if the QR e-code was stolen,it is difficult
to obtain the customer’ real information directly.
(3) A set of verification codes is coded according to the guest and booking information. Even if the
basic information of the customer and reservation is compromised, the correct verification code cannot
be generated, which can avoid the forgery of the QR e-code.
(4) Each QR e-code requires the user to set up a set of personal passwords, whose length is no less
than 6.

3.3. Illegal user identification

According to relevant national laws and regulations, guests must provide their ID card to verify their
real information when they check-in for the first time. IT combines cryptography, verification code,
and passwords. And this is called the multi-directional identity authentication module shown in Figure
2.
QR e-code
analysis

analysis
ID Code analysis

verification User Name

code

Information Information
interaction interaction

DRC Database 2th generation ID

Information card reader
query query interaction
read read
ID Code calculate
verification
User Name Name ID Code
code

Figure 2. The multi-directional identity authentication module

The name and the ID code read by the 2th generation ID card reader is marked as Name_A and ID
code_A; the name, the ID code and the verification code read from the QR code is marked as Name_B,

[email protected] - February 27, 2024 - Read articles at www.DeepDyve.com

2IM 2019 IOP Publishing
IOP Conf. Series: Materials Science and Engineering 565 (2019) 012006 doi:10.1088/1757-899X/565/1/012006

ID code_B and verification code_B; With ID code_A as the query keyword, DRC and database are
queried. The results are marked as Name_C and ID code_C, and verification code_C is calculated.
When customers check in, the verification process is as the follows:
(1) Only when Name_C or ID code_C is not NULL, then real name authentication passed.
(2) Only then Name_B = Name_C, ID code_B = ID code_C and verification code_B = verification
code_C, then the QR e-code is not a fake.
(3) When the password entered by the user matches the system successfully, the guest room will
open automatically.
(4)A set of passwords (the password length is not less than 6) is set by the user. After being
encrypted by MD5, the password exists in the database as ciphertext, and the tenant enters the
password to verify the system.

3.4. Calculation mode of the verification code

The ID number in mainland China is 18 in length, and the bit 18 is a number or a letter "X". Bit 4 to
bit 10 is hided when the QR is coded. And bit 11 to bit 18, check-in time, check-out time and the
length of passwords combines to a set of number, according to which the verification code is coded.
From beginning to end, each two-digit number is coded as a letter. And the mapping rules f(m)are as
follows:
 01 − > ' A '
02 − > ' B '


 ...
26 − > ' Z '
(1)
Take the two-digit number n1n2 as an example, the code result α can be expressed as:
 Null , n1n2 = 00;

=α  f ( n1n2 ), 01 ≤ n1n2 ≤ 26; (2)
 f ( n ) f ( n ), n n ≥ 26;
 1 2 1 2

4. Experiment

4.1. Example
This section shows the actual effects of a QR e-id card, illustrated with the data of a virtual customer.
Customer information and room reservation information are as follows:
Name: MaJianlong; RoomNo:303; Check-in Time: May 1, 2018; Check-out Time: May 3, 2018;
Certificate type: ID Card; Certificate No:510123199606270066. The user's personal password is
0123456abc. Based on the above information system, the verification code can be calculated
as :FBGBHFFTREATRECJ.
The QR e-card is shown in Figure 3.

Figure 3. The QR e-card

The information contained in QR is: CName:MJL; CRoomNo:303; CCheckIn:20180501;
CCheckOut:20180503; CIDType:001; CIDNo:510*******06272866; Parameter_VerificationCode:
FBGBHFFTREATRECJ.

[email protected] - February 27, 2024 - Read articles at www.DeepDyve.com

2IM 2019 IOP Publishing
IOP Conf. Series: Materials Science and Engineering 565 (2019) 012006 doi:10.1088/1757-899X/565/1/012006

During the valid time of booking, the customer can check in after entering the personal password
“0123456abc” as prompted by the system.

4.2. Security evaluation

The evaluation of the security is shown in Figure 4.
ID Number
Check-in Time
Name
Check-out Time
Password

one-to-one one-to-one

a combination Verification
of letters code

one-to-many one-to-many

α β

Figure 4. The evaluation of the security

The security of the system can be illustrated by the example in section 4.1.
According to the homophone characteristics of Chinese characters, α. Bit 11 to bit 18 of the ID
Number, check-in time, check-out time and the length of passwords combines to a set of number
‘06272866201805012018050310’. And there are at least 2 scenarios for β. In addition, the password
whose length is 10 consists of capital letters, small letters, and Numbers. Therefore, the number of
passwords can be expressed as (3):
f (γ ) = ( 26 + 26 + 10) ≈ 3.0331e+17
10
(3)

Based on the above description, there are more than 3*2*f(γ) possibilities for one QR e-code card.
The system has high security.

5. Conclusion & future enhancement

This paper presents an alternative method for authentication in hotel room management. Basically this
method involves the Check-in process by keeping the QR-CODE at the core part. Here we have made
a progress in the user perspective of implementation of the technology. Use of the traditional RFID
hotel-room card by using the QR e-code card, which co-use computers and mobile devices to protect
online hotel-users’ private information, in addition, reduce the hotel operating costs effectively.
The whole process is carried out by encrypting the data of hotel-users’ private information and
generating the QR e-code. This project can be further improved by increasing its application areas by
implementing it in virtual assets protection, in addition to the electronic hotel-card.

Acknowledgments
The work is supported by National Key Research and Development Program under Grant
2016YFB0800600, Opening Fund of Geomathematics Key Laboratory of Sichuan Province
(csxdz201710), Key Laboratory of Pattern Recognition and Intelligent Information Processing,
Institutions of Higher Education of Sichuan Province, Chengdu University, Funding MSSB-2018-0.
Sichuan support Plan(No.2016FZ0112).

[email protected] - February 27, 2024 - Read articles at www.DeepDyve.com

2IM 2019 IOP Publishing
IOP Conf. Series: Materials Science and Engineering 565 (2019) 012006 doi:10.1088/1757-899X/565/1/012006

References
[1] Crossler, R.E., et al., Understanding Compliance with Bring Your Own Device Policies Utilizing
Protection Motivation Theory: Bridging the Intention-Behavior Gap, in Journal of Information
Systems. 2014, American Accounting Association. p. 209-226.
[2] Meso, P., Y. Ding, and S. Xu. Applying Protection Motivation Theory to Information Security
Training for College Students. Journal of Information Privacy & Security, 2013. 9(1): p. 47-67.
[3] Tank A H, Unde M M, Patel B J, et al. Storage and transmission of information using grey level
QR (quick-response) code structure[C]// Advances in Signal Processing. IEEE, 2016:402-405.
[4] Credit firm Equifax says 143m Americans' social security numbers exposed in hack,
https://www.theguardian.com/us-news/2017/sep/07/equifax-credit-breach-hack-social-security.
[5] Revealed: 50 million Facebook profiles harvested for Cambridge Analytica in major data breach,
https://www.theguardian.com/news/2018/mar/17/cambridge-analytica-facebook-influence-us-
election
[7] Wang J S, Zhang J N. Design and Realization of Hotel Management System[J]. Computer
Engineering & Design, 2011, 2(1):1173-1176.
[6] Hotel group probes private info leak of 130 million clients,
http://www.globaltimes.cn/content/1117459.shtml.
[8] Kroenke, D., Experiencing MIS, in 5/E. 2014, Prentice Hall. p. 696.
[9] Kan, T.-W., C.-H. Teng, and M.Y. Chen, QR Code Based Augmented Reality Applications, in
Handbook of Augmented Reality, B. Furht, Editor. 2011, Springer: New York. p. 339-354.
[10] QR Code Tutorial, http://www.thonky.com/qr-code-tutorial/
[11] Prabakaran G,Bhakkiyalakshmi R, "Transmission of Data Using Arm Based Privacy Protection
QR-code", International Journal of Engineering Development and Research (IJEDR),
ISSN:2321-9939, Vol.2, Issue 2, pp.1458-1461, June 2014.
[12] YAN Wen-bo, YAO Yuan-zhi, et al.Privacy-preserving scheme for logistics systems based on
2D code and information hiding[J].Chinese Journal of Network and Information
Security,2017,3(11):22-28.
[13] MIAO Fang. Data Oriented Security Architecture[J]. ZTE Technology Journal, 2016(1):19-22.

[email protected] - February 27, 2024 - Read articles at www.DeepDyve.com
